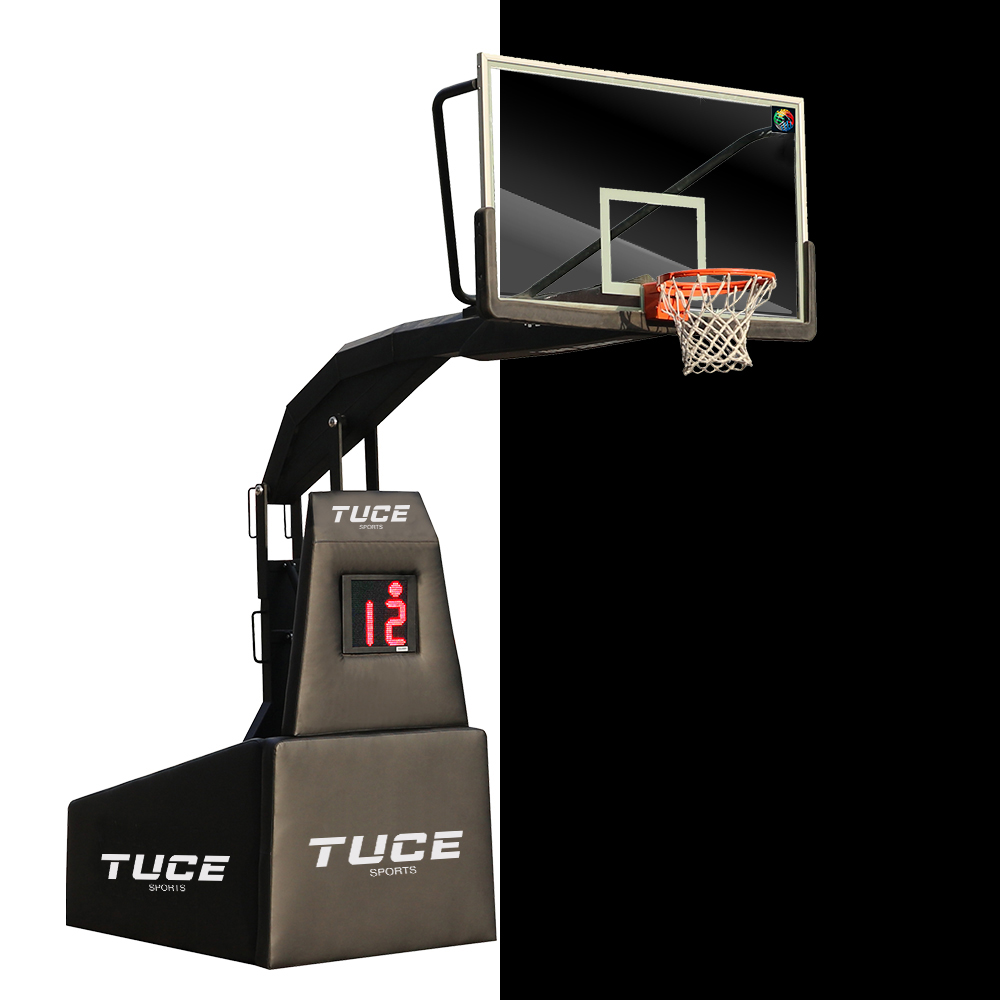

3V3 game basketball rack Spring Lift TCJ-101

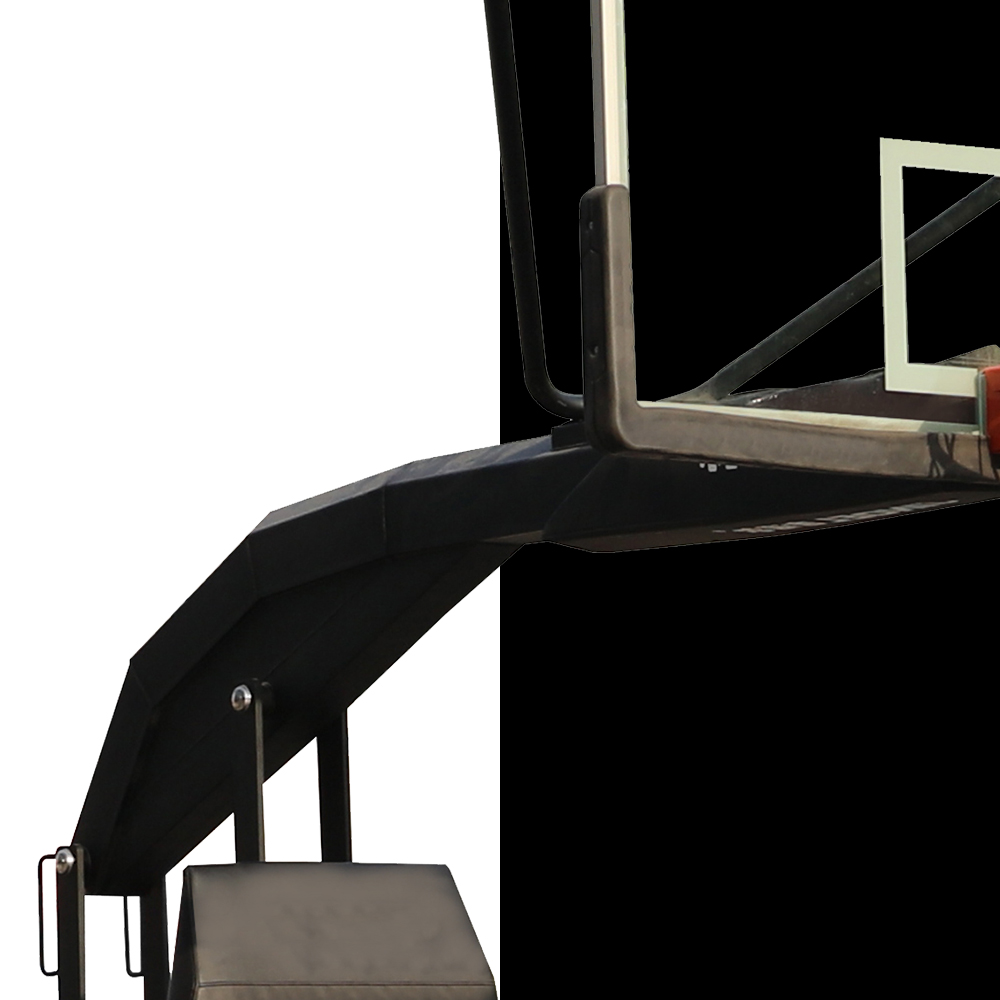

1.The extension arm of the basketball stand is 2.15m (including protective cover).Dacromet screws ensure no rust for 8 years.

2.The basketball frame base is 2000mm x 1100mm x 1050mm x 650mm x front height.

The basketball frame base is made of 80mm x 80mm x 3.0mm square pipe and 120mm x 80mm x 3.0mm rectangular pipe,

 and the bottom plate is made of 3.0mm iron plate flanged on a special flanging machine.

3.The front and rear columns of the basketball stand are welded with 200mm×100mm×3.0mm and 100mm×10mm0×3.0mm square pipes.

4.The beam of the basketball frame :200mm×150mm×3.0mm shaped pipe and 120×120×3.0mm square pipe.

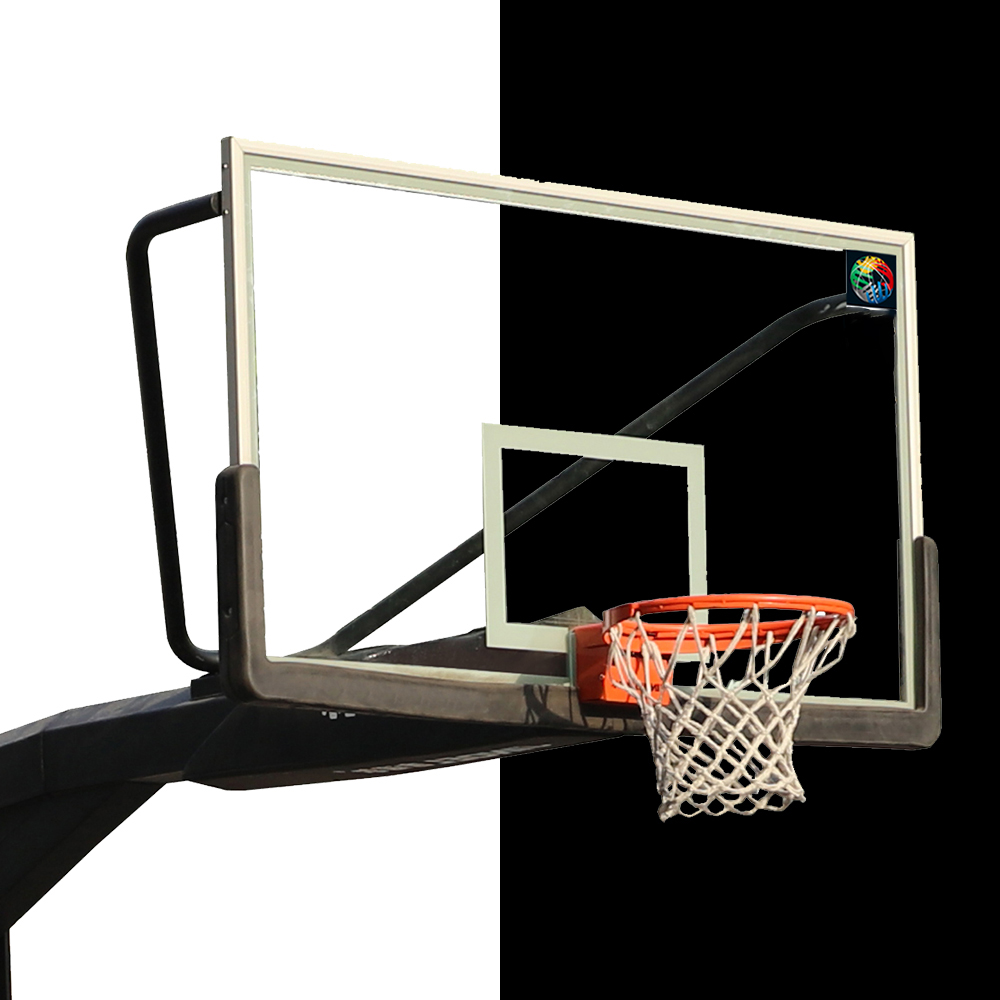

5.Backboard size: 1800mm×1050mm. Adopt high strength safety and explosion-proof tempered glass.

The outer frame adopts 40mm aluminum profile, EVA protection bar installed around the side.

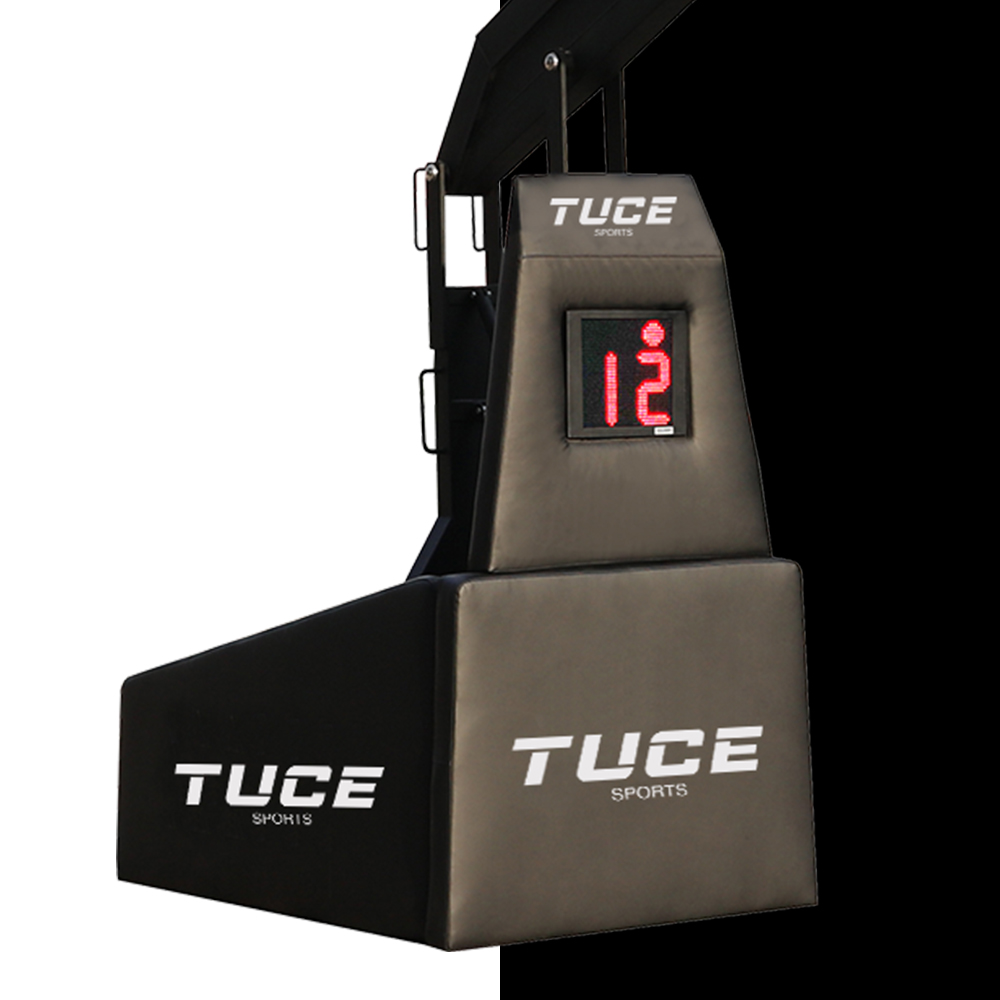

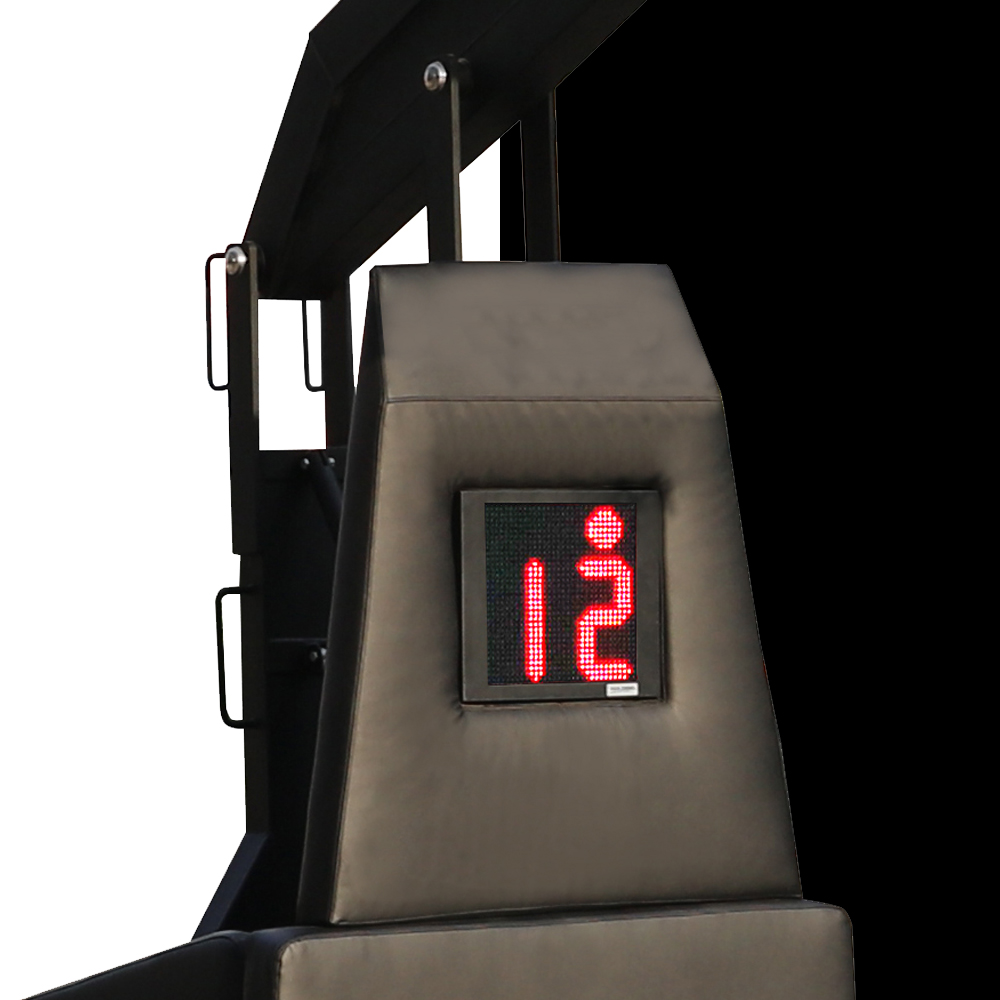

6.The basketball stand with a single-sided 12-second timer is installed and embedded in the inside of the column sheath.

7.Product structure principle: Five springs are placed on the base of the basket frame to connect with the front column,

using the lever principle and the elastic balance in the spring system to achieve the lifting function of the basketball frame.
