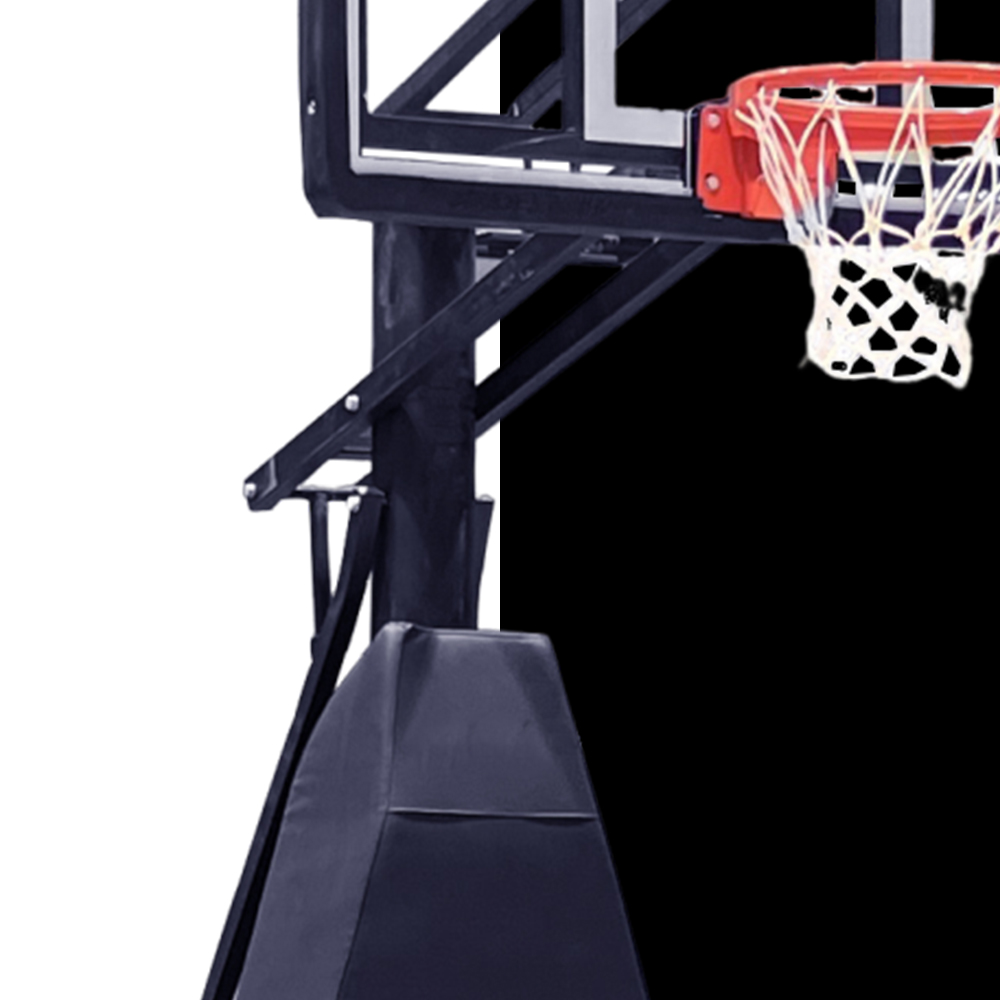

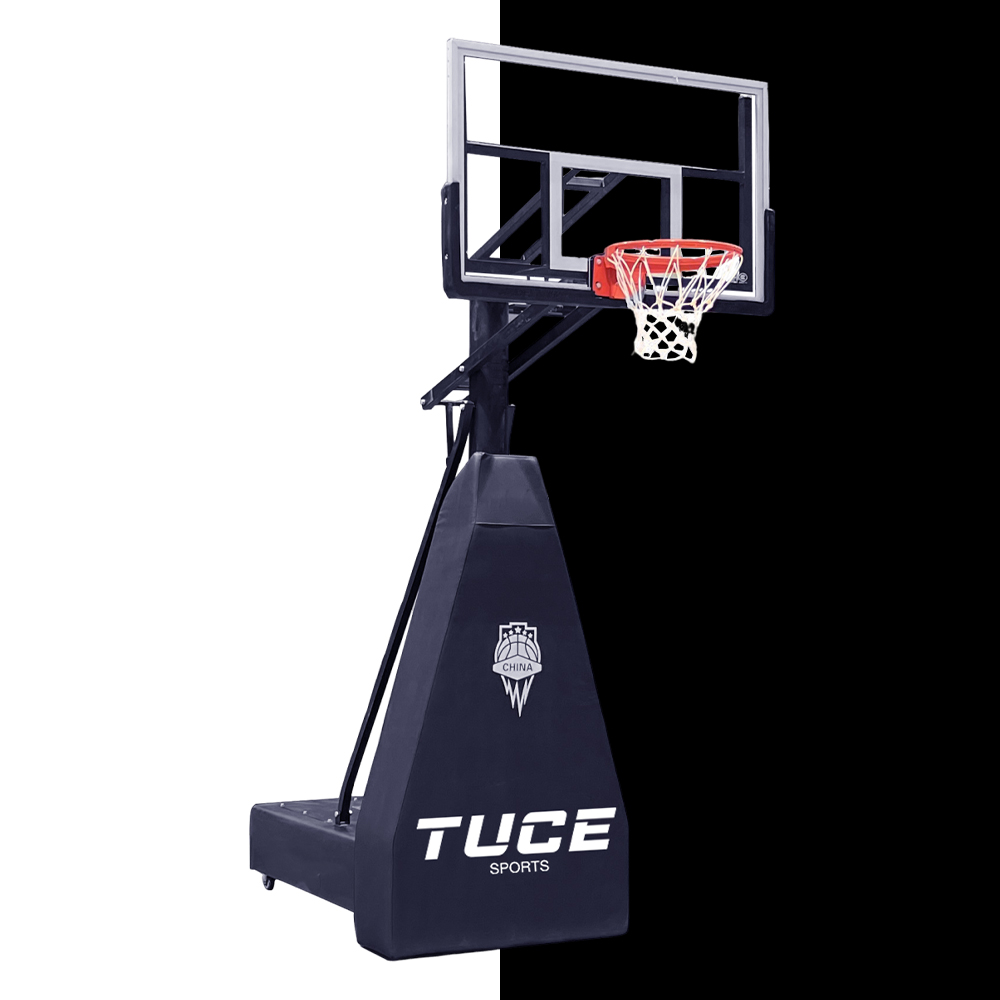

3V3 high-grade buried basketball stand TCJ-107

1.The extension arm of the basketball stand:2.15mm, the screws are Dacromet screws, which guarantee no rust for 8 years.

2.The column of the basketball stand:6.0mm steel plate bent and welded, the overall size is 400mm×300mm.

3.The beam of the basketball frame:3.0mm steel plate bent and welded,150mm×150mm×3.0mm square pipe welded.

4.The pull rod on the basketball stand:Φ48mm×3mm round tube bent at the last time in the CNC bending machine.

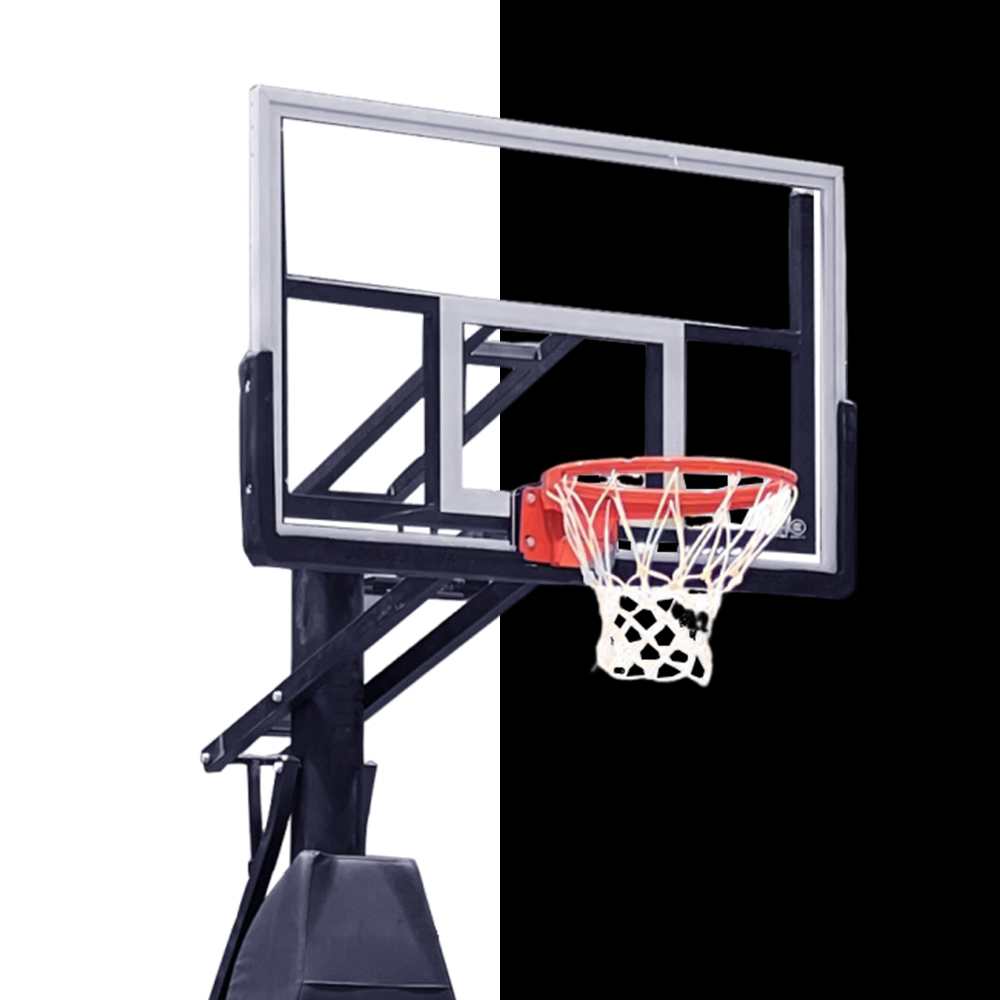

5.The backboard is equipped with international high-strength safety tempered glass backboard specifications: 1800mmx1050mm,

the side of the backboard is covered with EVA protective rubber strip to resist aging and not fade

6.The outer border of the backboard:4mm thick and 40mm wide aluminum profiles pressed by mold.

7. The basket ring:Φ18mm solid round steel,.The hoop has good bending resistance .

8. The coating thickness:70-80um, the hardness is 2H, and the corrosion on one side of the grid is <2mm.
