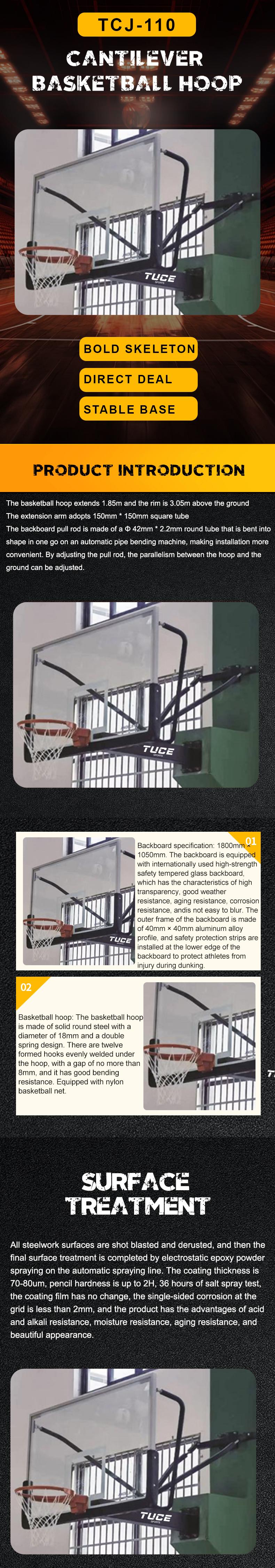

Cantilever basketball stand TCJ-110

1.The arm of the basketball stand :1.85m

2.The hoop:3.05m off the ground

3.The extension arm adopts 150mm*150mm square pipe

4.The backboard pull rod adopts Φ42mm*2.2mm round tube in the automatic pipe bending machine.

5.Backboard specifications: 1800mm×1050mm, backboard with international high strength safety tempered glass backboard,

6.The backboard frame uses 40mm×40mm aluminum alloy profile,

and installed along the lower side of the backboard safety protection bar.

7.Basket ring: The basket is made of Φ18mm solid round steel, double spring design, twelve forming hooks are welded under the ring,

the gap is not more than 8mm.The screws use Darkot screws to ensure that it will not rust for 8 years.

8.The coating thickness is 70-80um, the pencil hardness is 2H, and the salt spray test is 36 hours.

The coating film does not change, and the single-side corrosion at the grid is <2mm
