The extension arm of the basketball stand is 2250mm, the upper edge of the basket is 3050mm from the ground, and the applicable field is at least 34.2m.

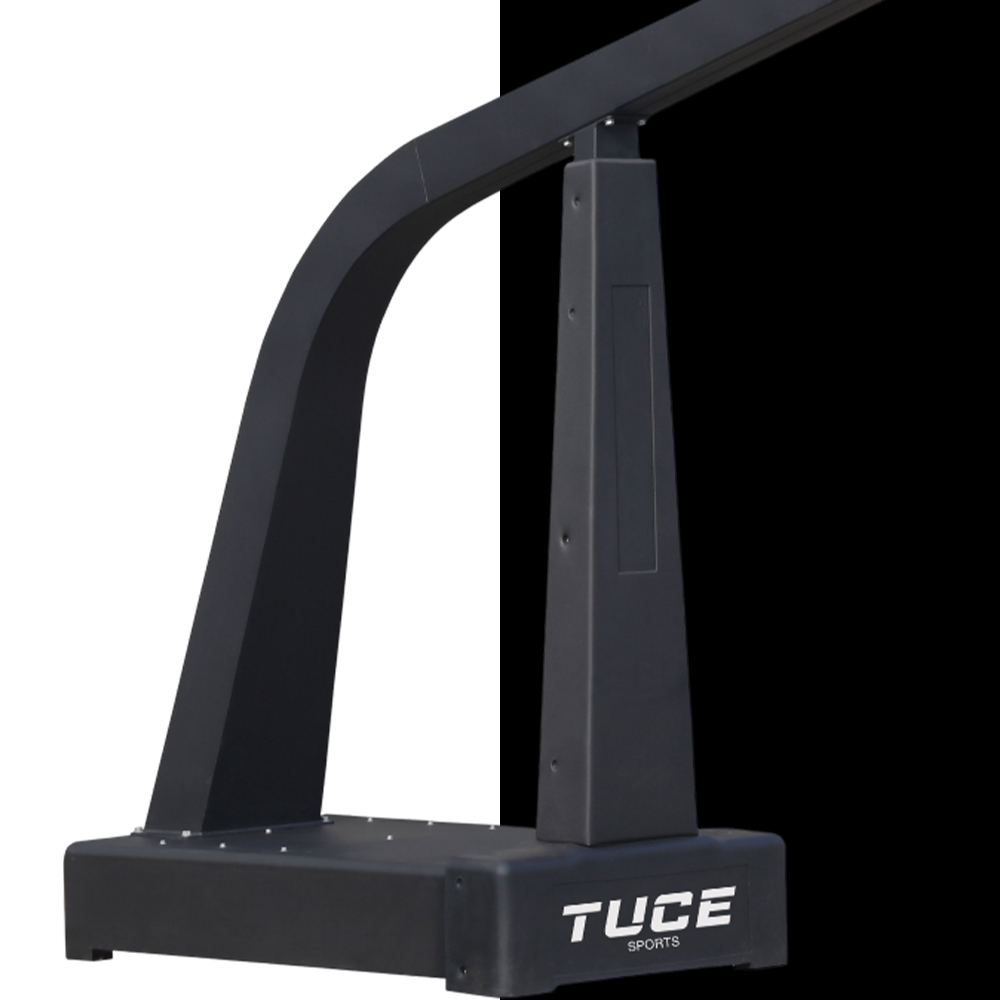

1. Base size: 2000mm×1000mm×340mm. The 2.5mm thick steel plate is stamped by the mold, and the front side has no weld, which ensures that it will not be eroded by rainwater flowing into the interior; All the corners are curved without edges, which is safer and greatly reduces the collision injury during movement.

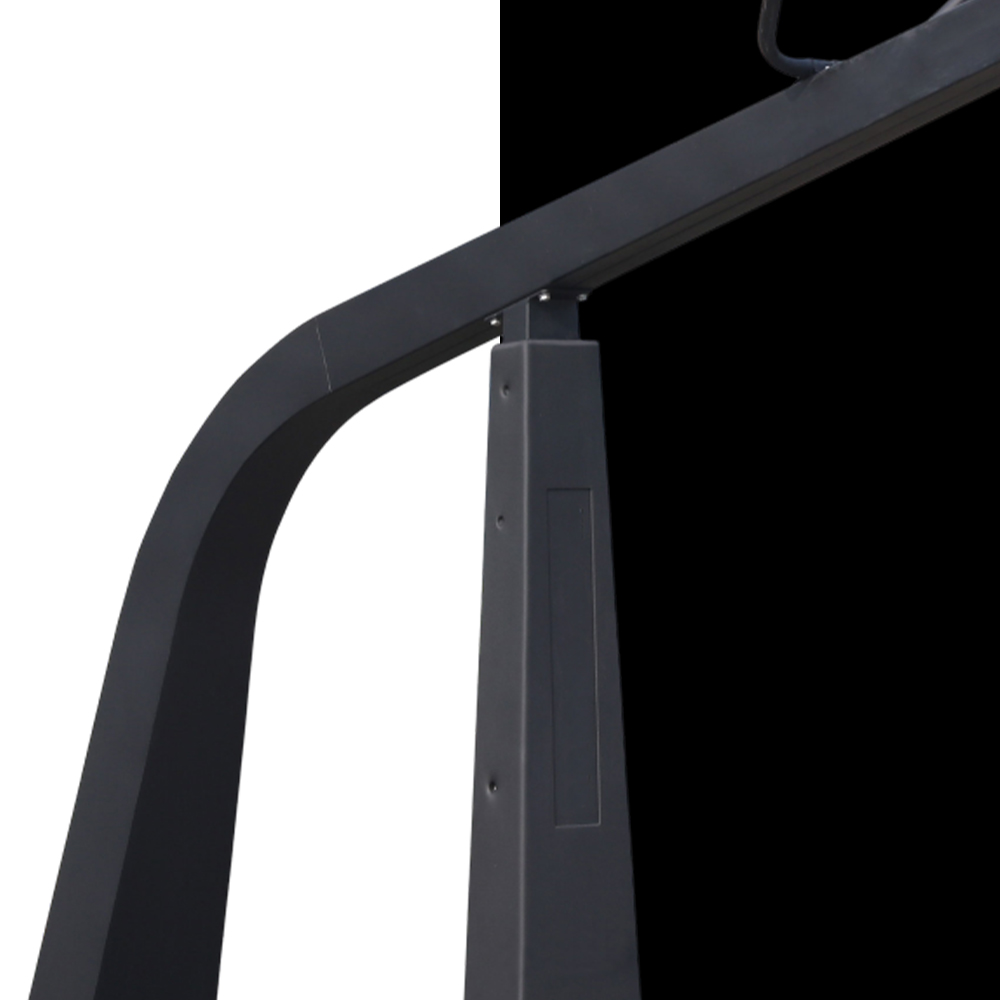

2. The upper width of the column is 160mm×90mm, the lower width is 360mm×180mm, and the 2.5mm thick steel plate is welded by folding edge to form a cone body with lower width and upper narrow, which conforms to the mechanical design principle and makes the structure safer and more secure.
3, the beam and the back tie rod adopts the integrated design, the large arc transition shows the overall curve, the upper width of 155mm×140mm, the lower width of 450mm×270mm, with 2.5mm thick steel plate by concave flange welding, the arc transition can effectively divide the stress, the structure is safer and more secure, greatly reducing the shaking of the basketball frame, enhance the stability of the basketball frame.
4, the backboard pull rod using Φ48mm*2.5mm round tube in the automatic bending machine bending molding, the front end of the pull rod adopts no-adjustment design, more convenient installation. The parallelism between the rim and the ground can be adjusted by adjusting the pull rod.

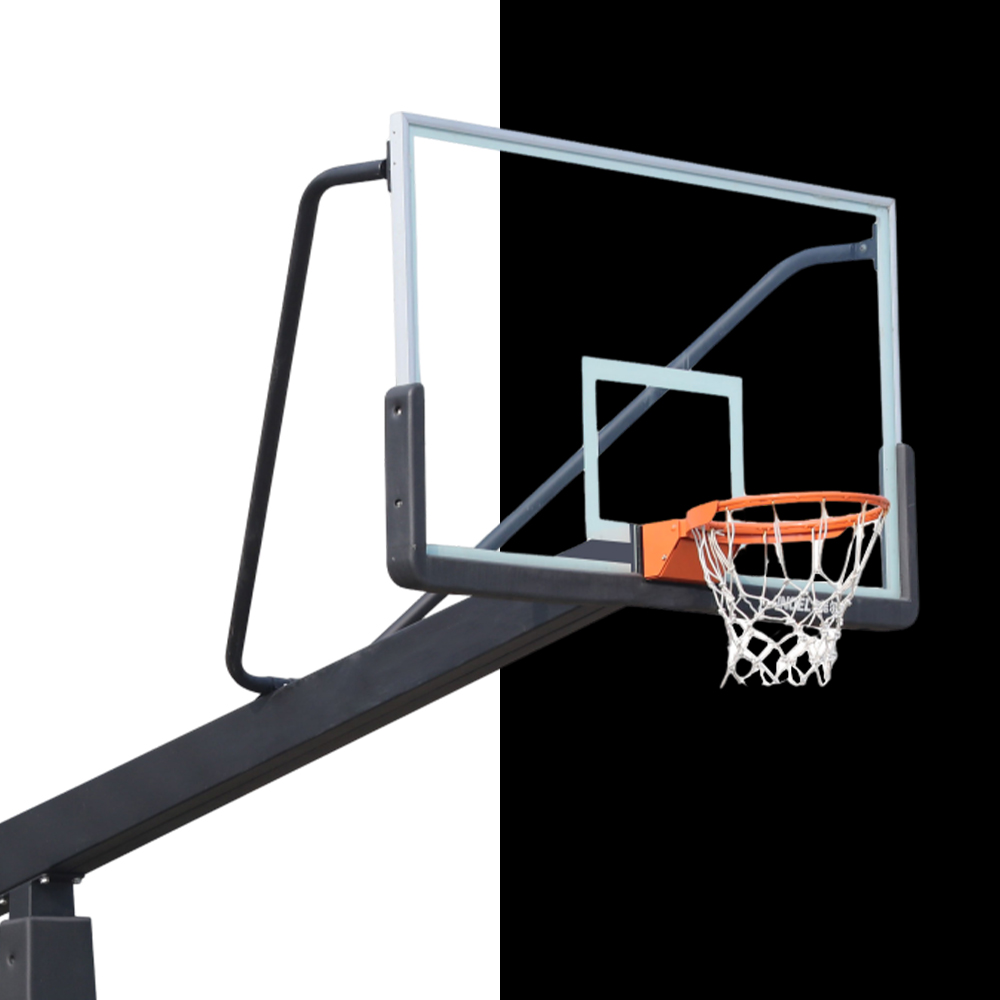

5, backboard specifications: 1800mm×1050mm, backboard with international high strength safety tempered glass backboard, with high transparency, good weather resistance, anti-aging, corrosion resistance, not easy to blur and other characteristics, the backboard frame using 40mm×40mm aluminum alloy profile, and in the backboard along the installation of safety protection bar, can protect athletes from injury when dunking.
6. The basket is made of Φ18mm solid round steel, double spring design, twelve forming hooks are welded under the ring, the gap is not more than 8mm, and the bending performance is good. With nylon basketball net.
7. Dacromet screws are used to ensure no rust for 8 years.
8, surface treatment: all steel surface after shot blasting rust treatment in the automatic spraying line using electrostatic thermosetting powder spraying to complete the final surface treatment, coating thickness 70-80um, pencil hardness of 2H,500 hours of aging test, no change in the coating film, the single side of the grid corrosion <2mm, the product has acid and alkali resistance, moisture and heat resistance, anti-aging, beautiful appearance And other advantages.
9, box and column with half package EVA outdoor special sheath, sheath molding, the overall thickness of 30mm, the outer dimension of the column sheath 220mm, the lower width 410mm, the outer dimension of the base sheath 360mm high, 1050mm wide, the allowable error range of ±5mm. The base sheath adopts the curved non-angular design, which is safer and greatly reduces the collision injury in the movement. EVA sheath has excellent flexibility, impervious property, wear resistance, and will not be damaged by the outdoor wind and sun for 10 years.
