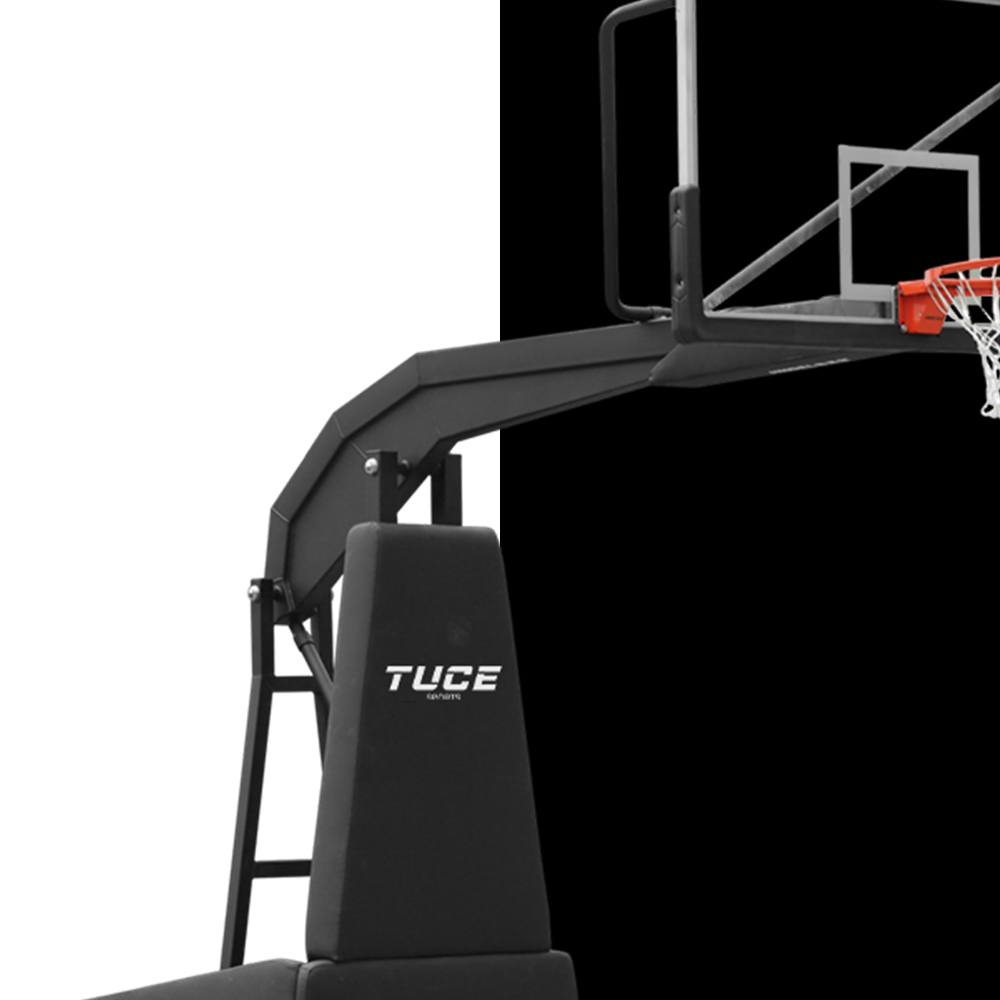

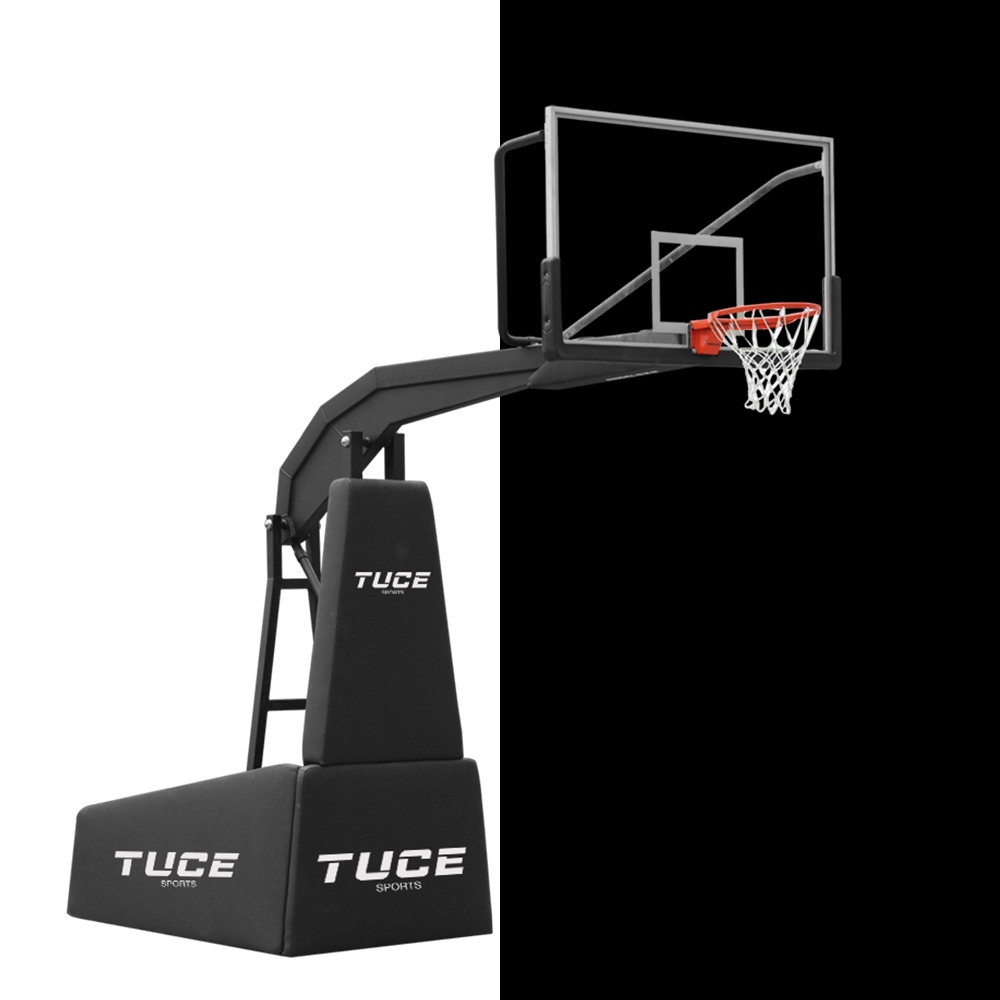

High-grade imitation hydraulic basketball stand TCJ-104

1.The extension arm of the basketball stand :2.25m, the upper edge of the basket circle is 3.05m from the ground.Dacromet screws ensure no rust for 8 years.

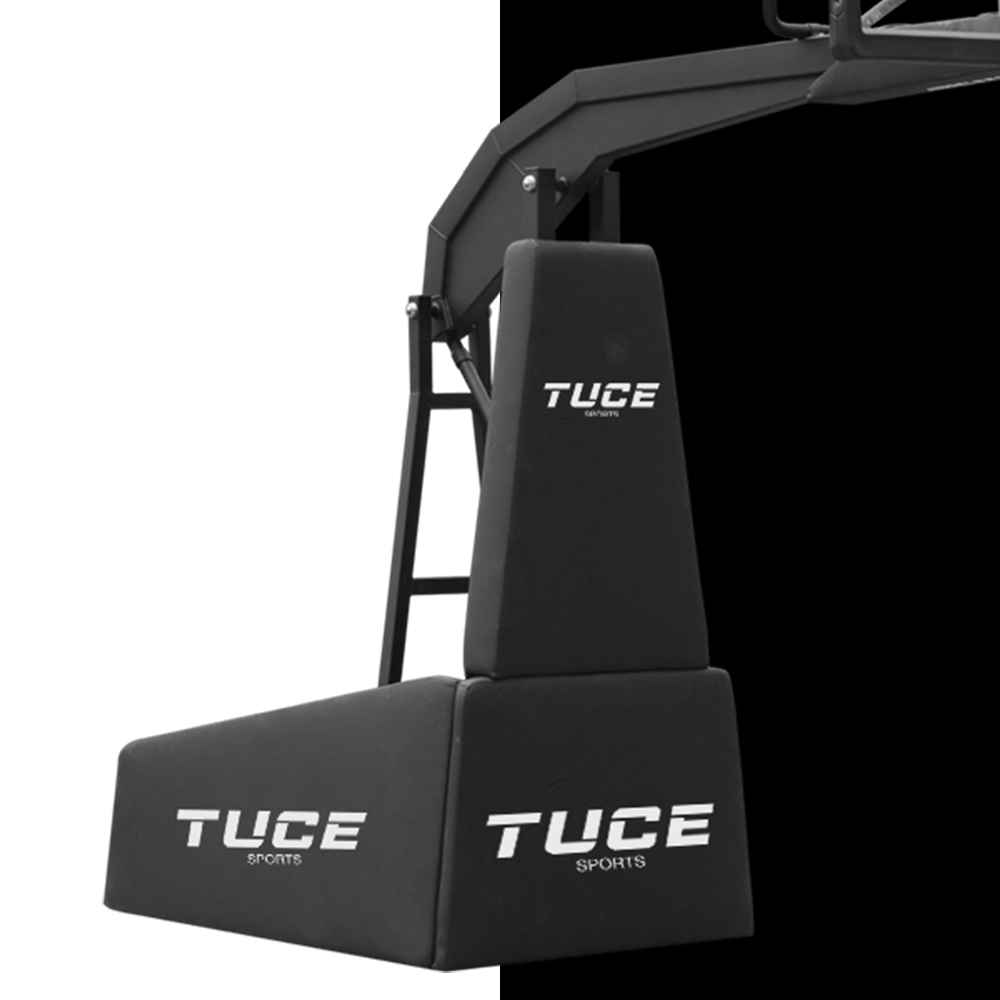

2.The basketball stand base length :2000mm× width 1000mm× front height 930mm× rear height 580mm.

3.The basketball stand base adopts 80mm×80mm×3.0mm square tube,.

4.The 120mm×80mm×3.0mm rectangular pipe and 80mm×40mm×3.0mm rectangular pipe and 40mm×40mm×2.0 square pipe are welded together.

5.The cover plate and the counterweight tray: folding of 3.0mm iron plate .

6.The bottom of the basketball stand column:14mm thick connecting steel plate.

7.The main pipe:80mm×80mm× 3.0mm square pipe and 80mm×40mm× 3.0mm square pipe.

8.The bottom of the back column of the basketball stand:14mm thick connecting steel plate.

9.The back column:80mm×80mm× 3.0mm square pipe.

10.The beam of the basketball frame:120mm×120mm×3.0mm square pipe and 3.0mm steel plate.

11.The locking rod:Φ48mm×3.0mm and is tightened by positive and negative wires.

12.The pull rod on the basketball:Φ48mm×3m round tube bent in the CNC pipe bending machine.

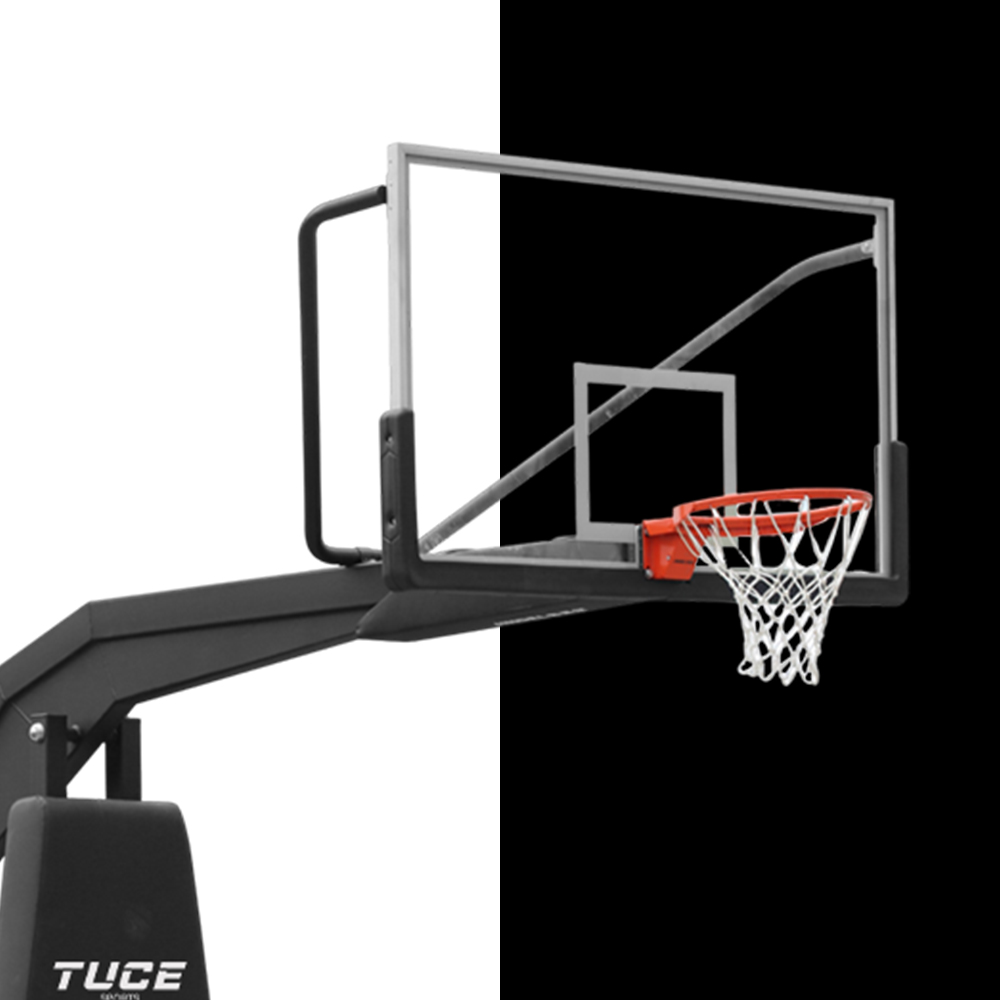

13.The backboard is equipped with international high-strength safety tempered glass backboard specification: 1800mmx1050mm, the side of the backboard is covered with EVA protective rubber strip to resist aging and not fade

14.The basket:Φ18mm solid round steel, three-spring design, 360 degrees, twelve forming hooks are welded evenly under the ring, the gap is not more than 8mm.

15.The coating thickness:70-80um, the hardness :2H,  the single-side corrosion at the grid <2mm

16. Optional 24-second timer: 24 seconds on one side and four sides.
