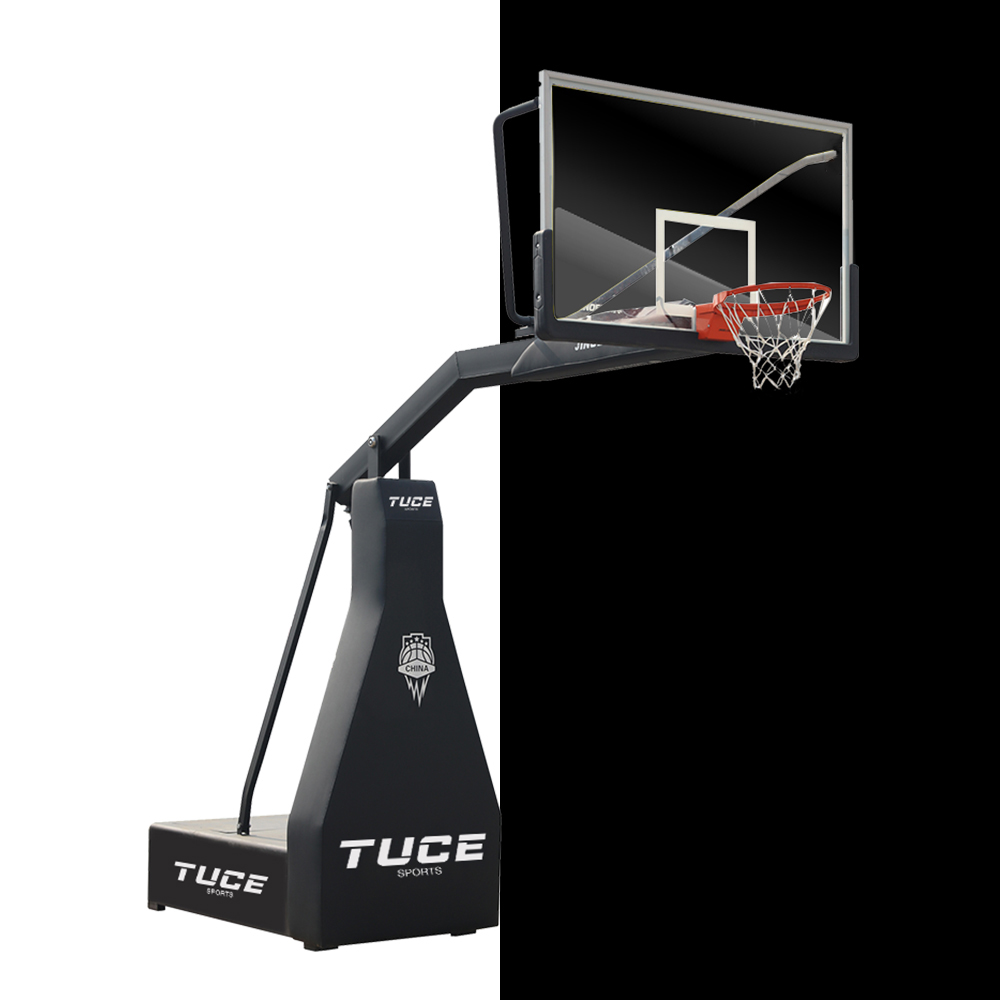

1. Wear 120mm soft sponge sheath, indoor and outdoor use, the basketball stand is FIBA certified product, the applicable field is at least 34.5m, and it is FIBA certified product, (FIBA-2 standard).
2. The extension arm of the basketball stand is 2.25m, the upper edge of the basket is 3.05m from the ground, and the product is suitable for international competitions. Dacromet screws ensure no rust for 8 years.

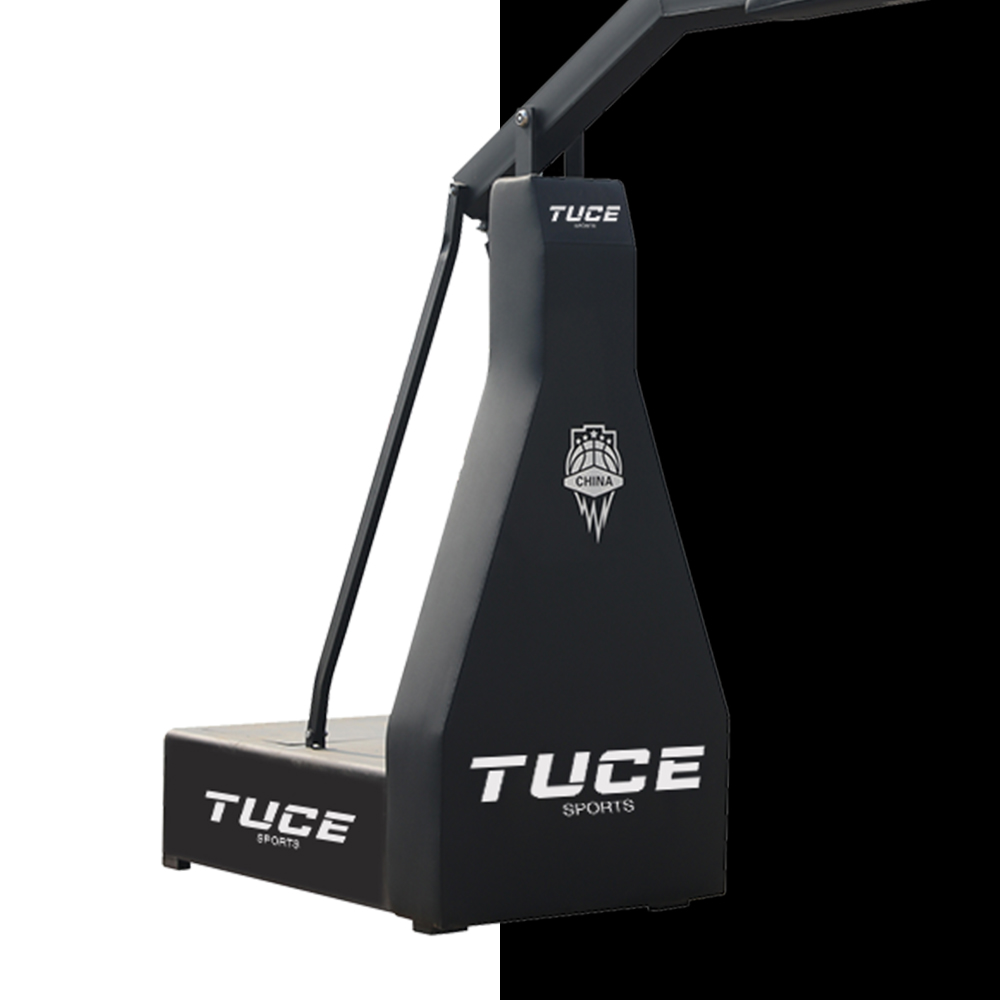

3. Basketball frame base length 2000mm× width 1000mm× height 500mm, the appearance of 3.0mm whole steel plate through the mold stamping molding, no weld, to ensure that the rain will not flow into the interior to bring erosion; All the corners are curved without edges, which is safer and greatly reduces the collision injury in motion.

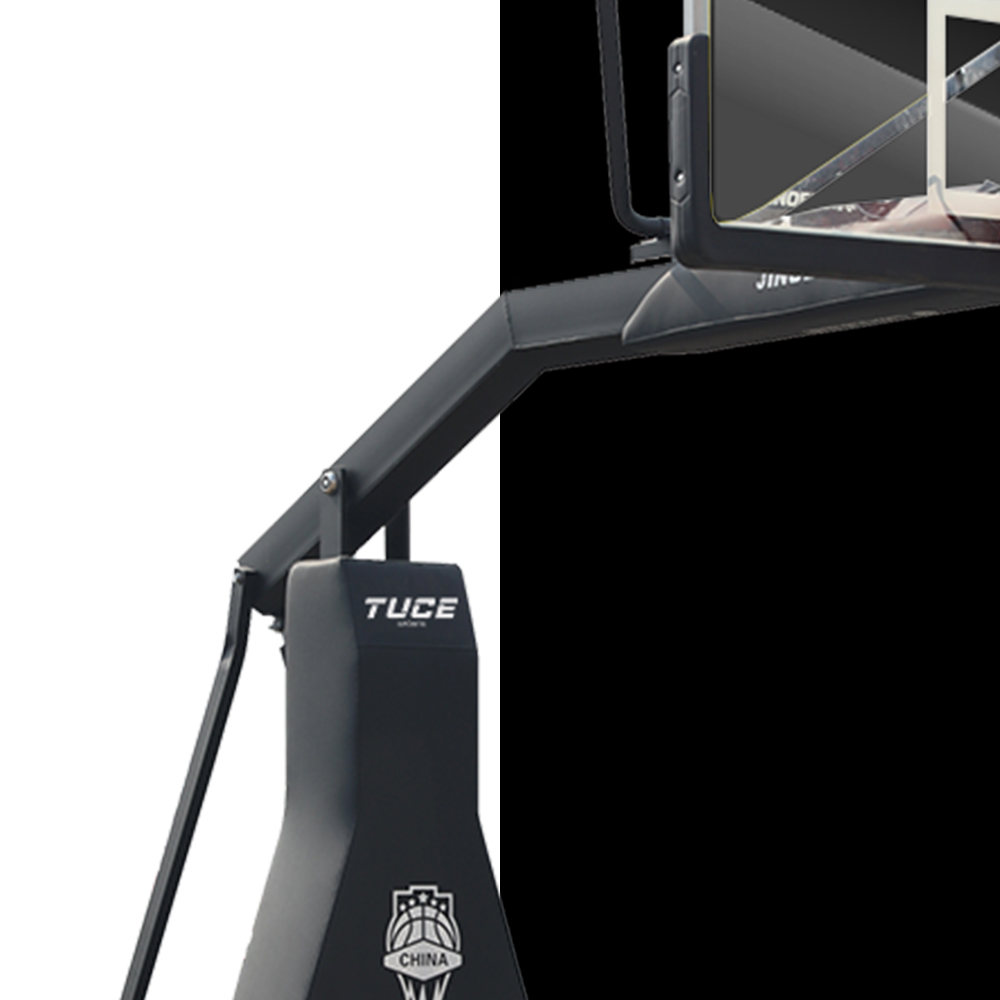

4. Under the column of the basketball stand, 180mm×180mm× 3.0mm large circular square pipe and 16.0mm steel plate are welded.
5. The beam of the basketball frame is made of 200mm×150mm×3.0mm special-shaped pipe.
6. The back tie rod of the basketball stand is made of 2 sets of 60mmx40mm square tubes, which are bent and formed once by the automatic pipe bending machine. The design is free of adjustment and the installation is more convenient. Both ends of the back tie rod are sealed and welded to prevent water, corrosion, rust and scratch.
7. The locking rod of the basketball stand is Φ48mm×3m and both ends are equipped with positive and negative connectors to adjust the height of the basketball stand.
8. The pull rod on the basketball stand is made of Φ48mm×3m round tube bent in the CNC pipe bending machine. The front end of the pull rod is free of adjustment, and the material is blocked, without rust, waterproof and anti-corrosion.

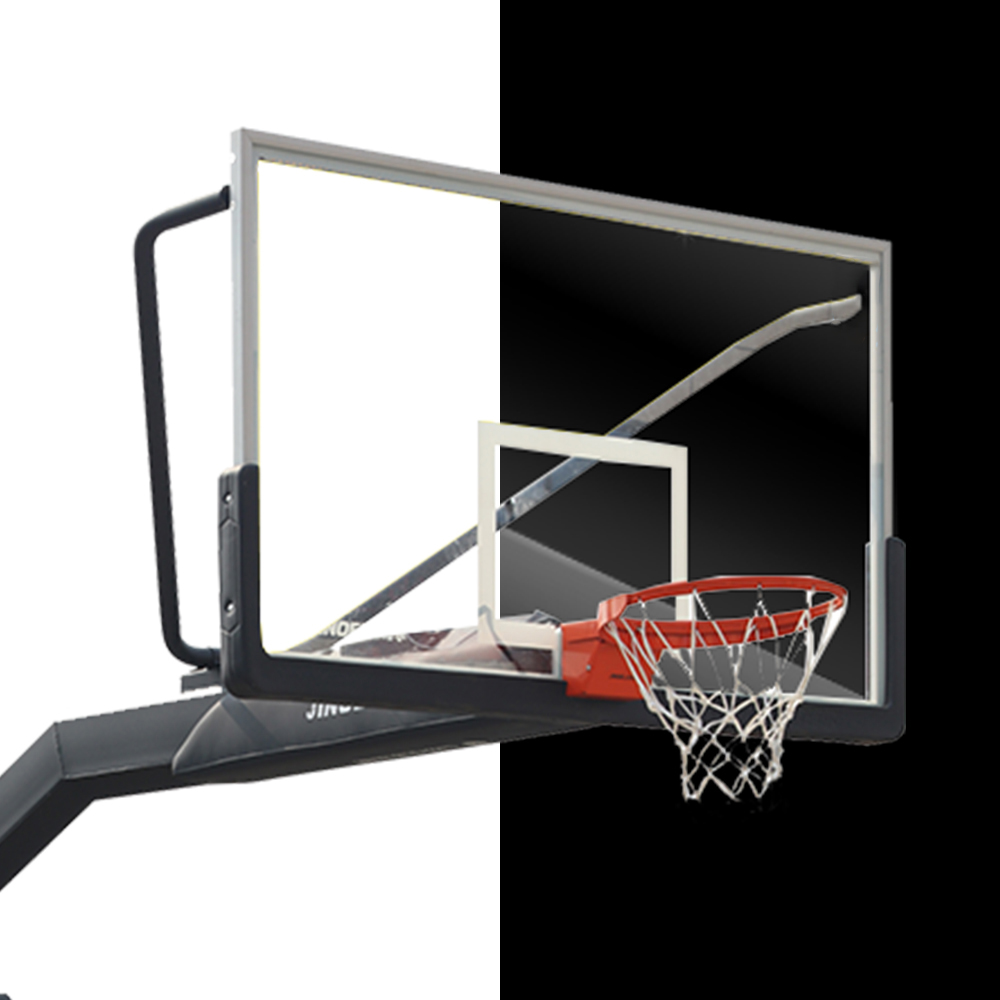

9. Backboard size: 1800mm×1050mm. Adopt high strength safety and explosion-proof tempered glass, with high transparency, good weather resistance, anti-aging, corrosion resistance, not easy to blur and other characteristics, the outer frame adopts 40mm aluminum profile, EVA protection bar installed around the side, can protect personnel from injury.
The outer frame of the backboard is made of 4mm thick and 40mm wide aluminum profiles pressed by mold, with a light belt slot; The backboard frame connector, the backboard and the hoop connector, and the backboard and the upper tie rod connector are all molded by casting aluminum process at one time with built-in reinforced plate structure and high strength. The backboard has built-in red and yellow light belts, which comply with FIBA certification standards. National standard installation hole distance.
10, the basket circle is made of Φ18mm solid round steel, and the circle is welded with a circular arc net hook formed by stamping, and the twelve sections are evenly distributed to leave appropriate gaps, with nylon basketball net. The hoop has good bending resistance and is horizontally fixed on the backboard, in line with FIBA certification standards.
11. The surface of all steel parts is treated by shot blasting and rust removal, and then the surface treatment is completed by electrostatic epoxy powder spraying on the automatic spraying line. The coating thickness is 70-80um, the hardness is up to 2H, and it has the advantages of good acid and alkali resistance, moisture and heat resistance, and anti-aging.
